Software-Defined Assets#

An asset is an object in persistent storage, such as a table, file, or persisted machine learning model. A software-defined asset is a Dagster object that couples an asset to the function and upstream assets that are used to produce its contents.

Software-defined assets enable a declarative approach to data management, in which code is the source of truth on what data assets should exist and how those assets are computed.

A software-defined asset includes the following:

• An AssetKey, which is a handle for referring to the asset.

• A set of upstream asset keys, which refer to assets that the contents of the software-defined asset are derived from.

• An op, which is a function responsible for computing the contents of the asset from its upstream dependencies.

  Note: A crucial distinction between software-defined assets and ops is that software-defined assets know about their dependencies, while ops do not. Ops aren't connected to dependencies until they're placed inside a graph.

Materializing an asset is the act of running its op and saving the results to persistent storage. You can initiate materializations from Dagit or by invoking Python APIs. By default, assets are materialized to pickle files on your local filesystem, but materialization behavior is fully customizable using IO managers. It's possible to materialize an asset in multiple storage environments, such as production and staging.

Relevant APIs#

Defining assets#

• Basic software-defined assets
• Assets with dependencies
• Creating assets from graphs
• Accessing asset context
• Configuring assets

A basic software-defined asset#

The easiest way to create a software-defined asset is with the @asset decorator.

from dagster import asset


@asset
def my_asset():
    return [1, 2, 3]

By default, the name of the decorated function, my_asset, is used as the asset key. The decorated function forms the asset's op: it's responsible for producing the asset's contents. The asset in this example doesn't depend on any other assets.

Assets with dependencies#

Software-defined assets can depend on other software-defined assets. In this section, we'll show you how to define:

• Basic asset dependencies
• Explicit asset dependencies
• External asset dependencies

Defining basic dependencies#

The easiest way to define an asset dependency is to include an upstream asset name as an argument to the decorated function.

In the following example, downstream_asset depends on upstream_asset. That means that the contents of upstream_asset are provided to the function that computes the contents of downstream_asset.

@asset
def upstream_asset():
    return [1, 2, 3]


@asset
def downstream_asset(upstream_asset):
    return upstream_asset + [4]

Defining explicit dependencies#

If defining dependencies by matching argument names to upstream asset names feels too magical for your tastes, you can also define dependencies in a more explicit way:

from dagster import AssetIn, asset


@asset
def upstream_asset():
    return [1, 2, 3]


@asset(ins={"upstream": AssetIn("upstream_asset")})
def downstream_asset(upstream):
    return upstream + [4]

In this case, ins={"upstream": AssetIn("upstream_asset")} declares that the contents of the asset with the key upstream_asset will be provided to the function argument named upstream.

Asset keys can also be provided to AssetIn to explicitly identify the asset. For example:

from dagster import AssetIn, AssetKey, asset

# One way of providing explicit asset keys:


@asset(ins={"upstream": AssetIn(asset_key="upstream_asset")})
def downstream_asset(upstream):
    return upstream + [4]


# Another way:


@asset(ins={"upstream": AssetIn(asset_key=AssetKey("upstream_asset"))})
def another_downstream_asset(upstream):
    return upstream + [10]

Defining external asset dependencies#

Software-defined assets frequently depend on assets that are generated elsewhere. Using SourceAsset, you can include these external assets and allow your other assets to depend on them.

For example:

from dagster import AssetKey, SourceAsset, asset

my_source_asset = SourceAsset(key=AssetKey("a_source_asset"))


@asset
def my_derived_asset(a_source_asset):
    return a_source_asset + [4]

Note: The source asset's asset key must be provided as the argument to downstream assets. In the previous example, the asset key is a_source_asset and not my_source_asset.

You can also re-use assets across repositories by including them as source assets:

from dagster import AssetKey, SourceAsset, asset, repository


@asset
def repository_a_asset():
    return 5


@repository
def repository_a():
    return [repository_a_asset]


repository_a_source_asset = SourceAsset(key=AssetKey("repository_a_asset"))


@asset
def repository_b_asset(repository_a_asset):
    return repository_a_asset + 6


@repository
def repository_b():
    return [repository_b_asset, repository_a_source_asset]

Using source assets has a few advantages over having the code inside of an asset's op load the data:

• Dagit can show asset lineage that includes the source assets. If a different asset definition in a different repository in the same workspace has the same asset key as a SourceAsset, Dagit can represent the asset lineage across those repositories.
• Dagster can use data-loading code factored into an IOManager to load the contents of the source asset.
• Asset dependencies can be written in a consistent way, independent of whether they're downstream from a source asset or a derived asset. This makes it easy to swap out a source asset for a derived asset and vice versa.

Non-argument dependencies#

Alternatively, you can define dependencies where data from an upstream asset doesn’t need to be loaded by Dagster to compute a downstream asset's output. When used, non_argument_deps defines the dependency between assets but doesn’t pass data through Dagster.

Consider the following example:

1. upstream_asset creates a new table (sugary_cereals) by selecting records from the cereals table
2. downstream_asset then creates a new table (shopping_list) by selecting records from sugary_cereals

from dagster import asset


@asset
def upstream_asset():
    execute_query("CREATE TABLE sugary_cereals AS SELECT * FROM cereals")


@asset(non_argument_deps={"upstream_asset"})
def downstream_asset():
    execute_query("CREATE TABLE shopping_list AS SELECT * FROM sugary_cereals")

In this example, Dagster doesn’t need to load data from upstream_asset to successfully compute the downstream_asset. While downstream_asset does depend on upstream_asset, the key difference with non_argument_deps is that data isn’t being passed between the functions. Specifically, the data from the sugary_cereals table isn't being passed as an argument to downstream_asset.

Graph-backed assets#

Basic software-defined assets are computed using a single op. If generating an asset involves multiple discrete computations, you can use graph-backed assets by separating each computation into an op and building a graph to combine your computations. This allows you to launch re-executions of runs at the op boundaries but doesn't require you to link each intermediate value to an asset in persistent storage.

Graph-backed assets are useful if you have an existing graph that produces and consumes assets. Wrapping your graph inside a software-defined asset gives you all the benefits of software-defined assets — like cross-job lineage — without requiring you to change the code inside your graph.

To define a graph-backed asset, use the from_graph attribute on the AssetsDefinition object:

@op(required_resource_keys={"slack"})
def fetch_files_from_slack(context) -> DataFrame:
    files = context.resources.slack.files_list(channel="#random")
    return DataFrame(
        [
            {
                "id": file.get("id"),
                "created": file.get("created"),
                "title": file.get("title"),
                "permalink": file.get("permalink"),
            }
            for file in files
        ]
    )


@op
def store_files(files):
    return files.to_sql(name="slack_files", con=create_db_connection())


@graph
def store_slack_files_in_sql():
    store_files(fetch_files_from_slack())


graph_asset = AssetsDefinition.from_graph(store_slack_files_in_sql)

Note: All output assets must be selected when using a graph-backed asset to create a job. Dagster will select all graph output automatically upon creating a job.

Defining basic dependencies for graph-backed assets#

The from_graph attribute on the AssetsDefinition object infers upstream and downstream asset dependencies from the graph definition provided. In the most simple case when the graph returns a singular output, Dagster infers the name of the graph to be the outputted asset key.

In the example below, Dagster creates an asset with key middle_asset from the middle_asset graph. Just like assets defined via @asset, each argument to the decorated graph function is an upstream asset name. middle_asset depends on upstream_asset, and downstream_asset depends on middle_asset:

@asset
def upstream_asset():
    return 1


@graph
def middle_asset(upstream_asset):
    return add_one(upstream_asset)


middle_asset = AssetsDefinition.from_graph(middle_asset)


@asset
def downstream_asset(middle_asset):
    return middle_asset + 1

When your graph returns multiple outputs, Dagster infers each output name to be the outputted asset key. In the below example, two_assets_graph accepts upstream_asset and outputs two assets, first_asset and second_asset:

@graph(out={"first_asset": GraphOut(), "second_asset": GraphOut()})
def two_assets_graph(upstream_asset):
    one, two = two_outputs(upstream_asset)
    return {"first_asset": one, "second_asset": two}


two_assets = AssetsDefinition.from_graph(two_assets_graph)

Defining explicit dependencies for graph-backed assets#

You can also define dependencies for graph-backed assets explicitly via the asset_keys_by_input_name and asset_keys_by_output_name arguments to from_graph:

@graph(out={"one": GraphOut(), "two": GraphOut()})
def return_one_and_two(zero):
    one, two = two_outputs(zero)
    return {"one": one, "two": two}


explicit_deps_asset = AssetsDefinition.from_graph(
    return_one_and_two,
    asset_keys_by_input_name={"zero": AssetKey("upstream_asset")},
    asset_keys_by_output_name={
        "one": AssetKey("asset_one"),
        "two": AssetKey("asset_two"),
    },
)

Asset context#

Since a software-defined asset contains an op, all the typical functionality of an op - like the use of resources and configuration - is available to an asset. Supplying the context parameter provides access to system information for the op, for example:

@asset(required_resource_keys={"api"})
def my_asset(context):
    # fetches contents of an asset
    return context.resources.api.fetch_table("my_asset")

Asset configuration#

Like ops, configuration is also supported for assets. Configuration is accessible through the asset context at runtime and can be used to specify behavior. Note that asset configuration behaves the same as configuration for ops.

For example, the following asset queries an API endpoint defined through configuration:

@asset(config_schema={"api_endpoint": str})
def my_configurable_asset(context):
    api_endpoint = context.op_config["api_endpoint"]
    data = requests.get(f"{api_endpoint}/data").json()
    return data

Refer to the Config schema documentation for more configuration info and examples.

Viewing and materializing assets in Dagit#

Once you've defined a set of assets, you can:

• Load them into Dagit
• View them in Dagit
• Materialize an ad-hoc set of them in Dagit
• Build a job, which materializes a fixed selection of the assets, and can be put on a schedule or sensor

Loading assets into Dagit#

To view and materialize assets in Dagit, you can point it at a module that contains asset definitions or lists of asset definitions as module-level attributes:

dagit -m module_with_assets

If you want Dagit to contain both assets and jobs that target the assets, you can place the assets and jobs together inside a repository.

Viewing assets in Dagit#

• All assets
• Details for an asset
• Dependency graph
• Upstream changes

All assets#

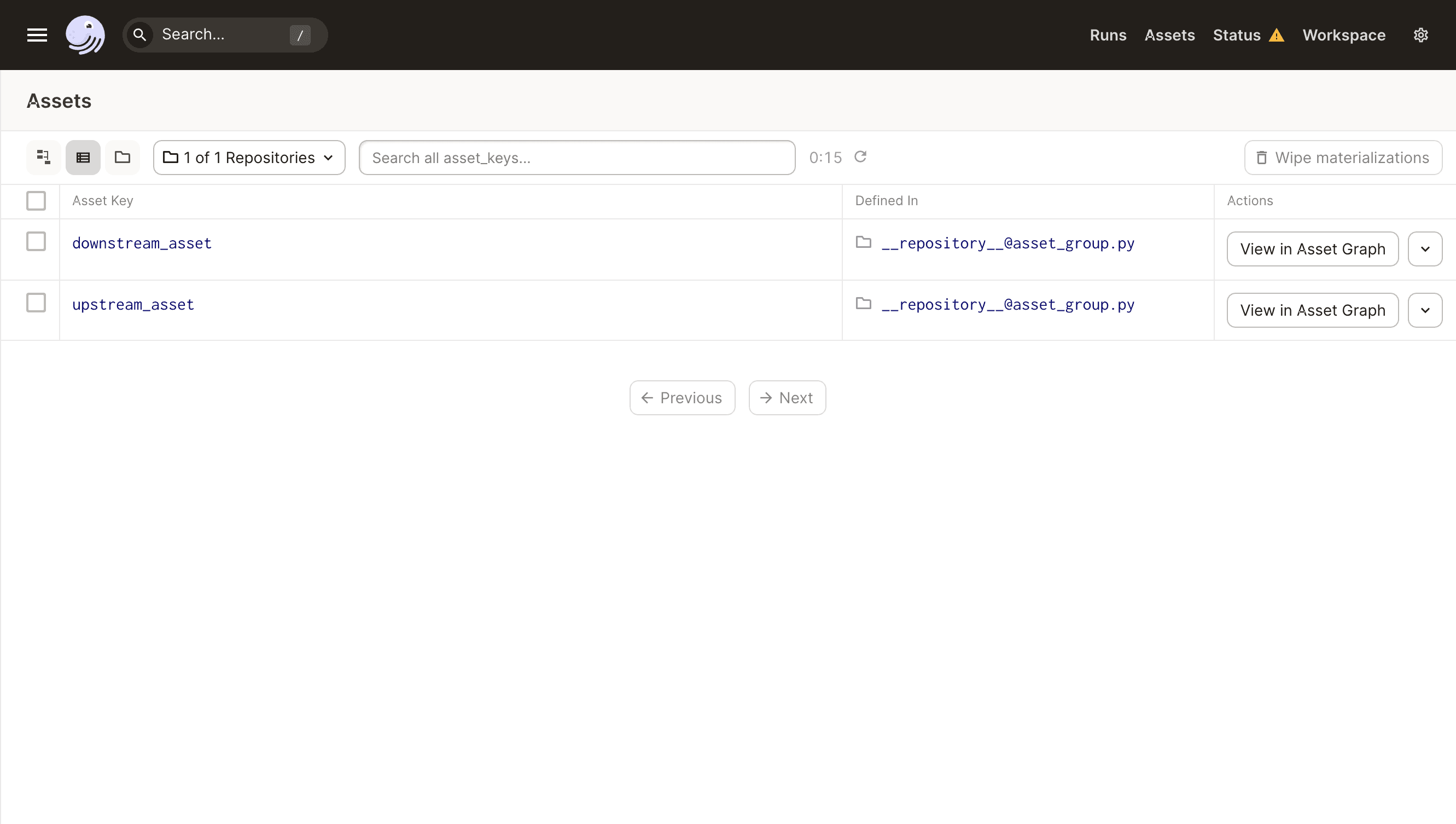

To view a list of all your assets, click Assets in the top-right corner of the page. This opens the Assets page:

Asset Details#

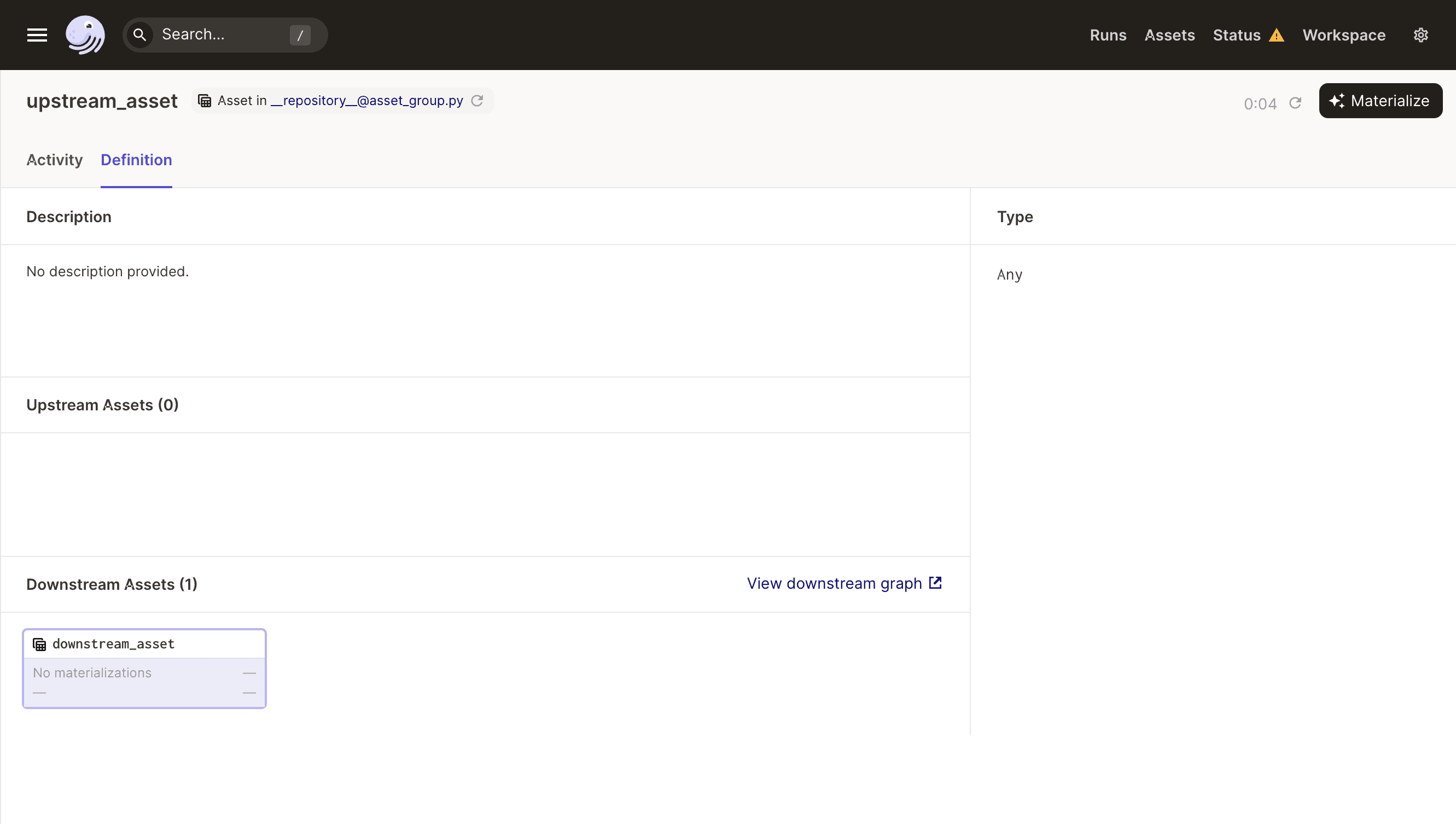

View the Asset Details page for an asset by clicking on its name:

Dependency graph#

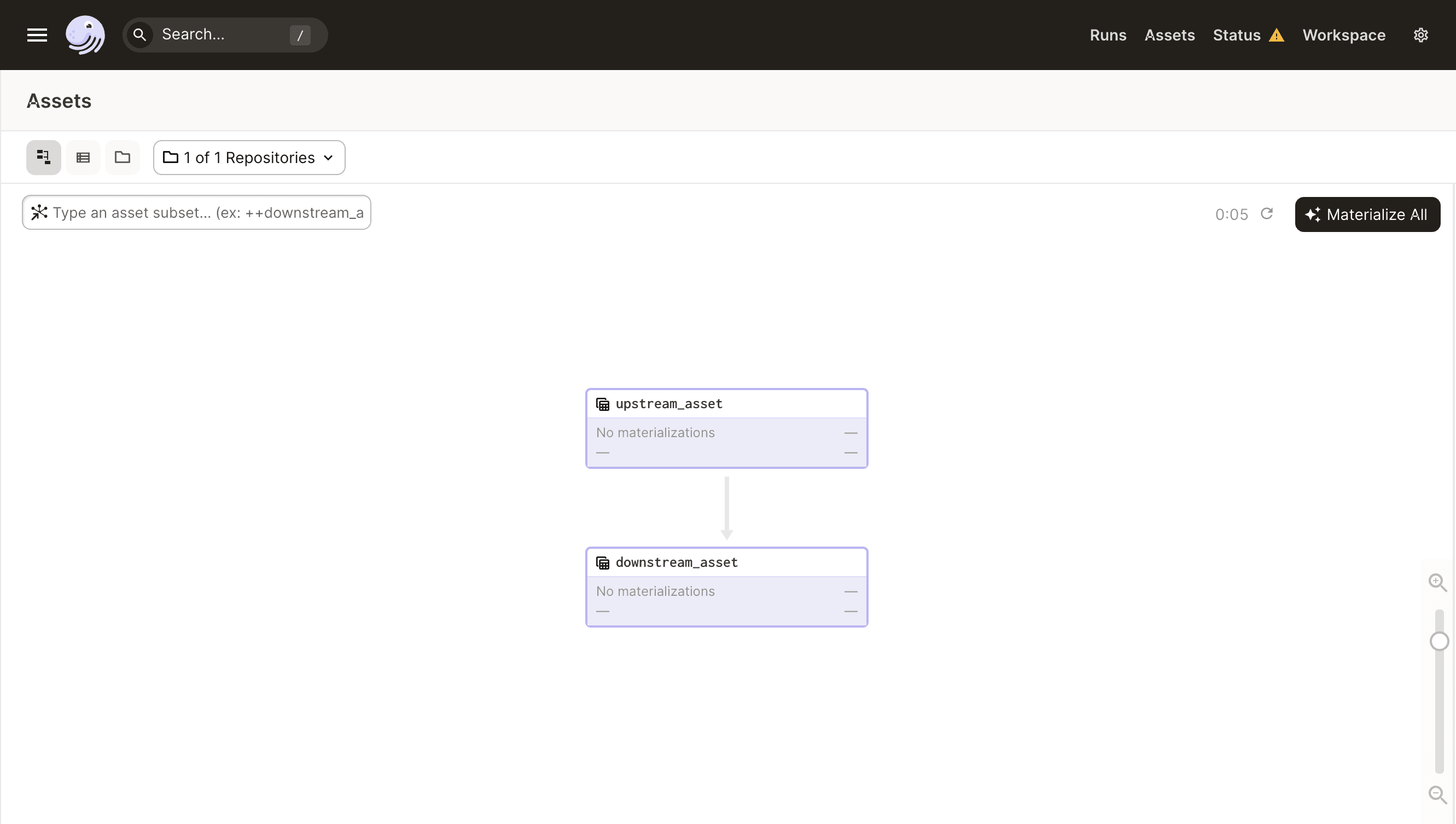

To view a graph of all assets and their dependencies, you can:

• Click the graph icon to the upper-left of the Asset Catalog
• Click View in Graph on any asset

Upstream changed indicator#

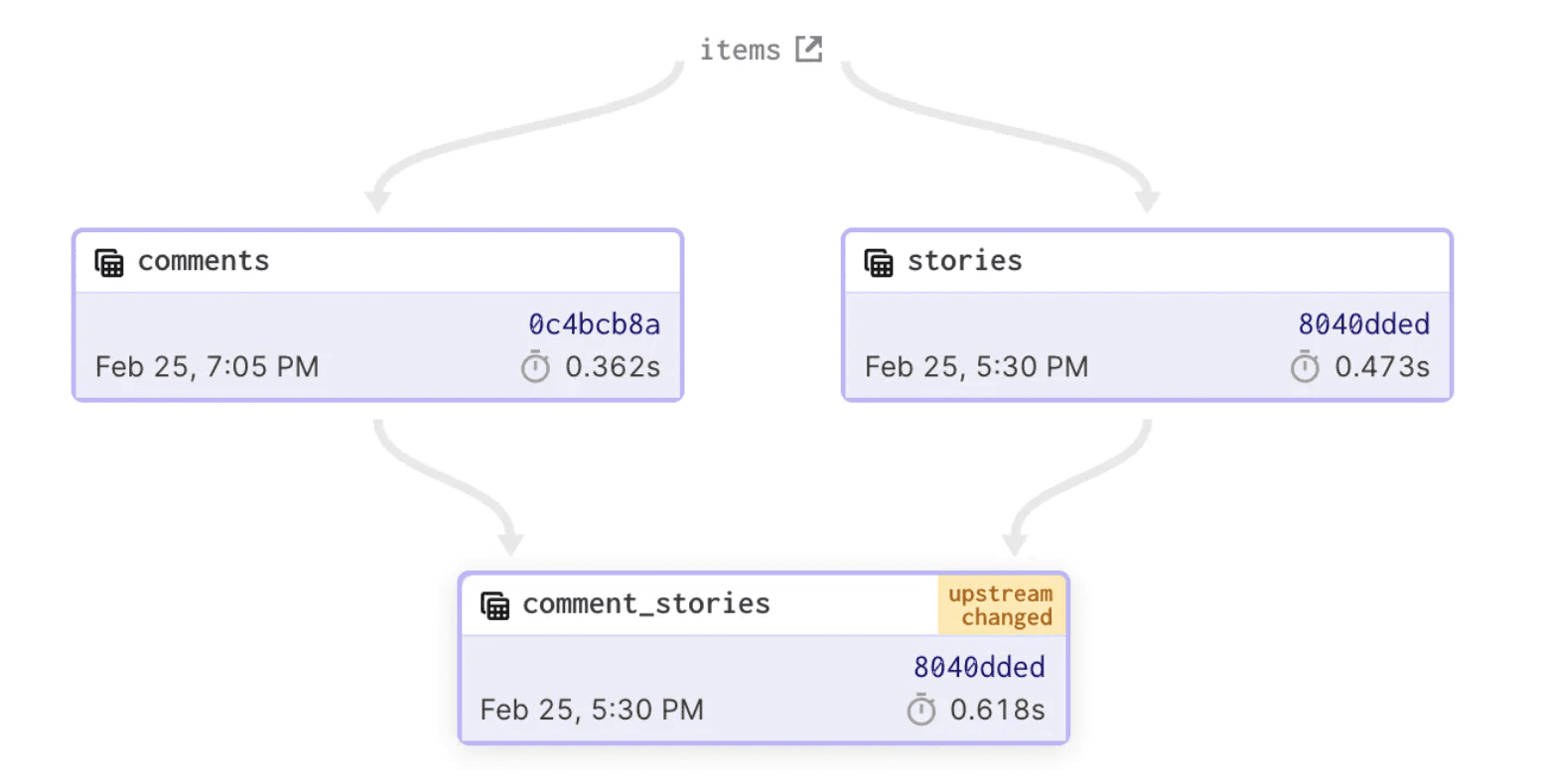

On occasion, you might see an upstream changed indicator on an asset in the dependency graph or on the Asset Details page:

This occurs when a downstream asset's last materialization took place earlier than the asset it depends on. Dagit displays this alert to notify you that the contents of an asset may be stale. For example:

• comments is upstream of comment_stories
• comment_stories depends on comments
• comment_stories was last materialized on February 25 at 5:30PM
• comments was last materialized on February 25 at 7:05PM

In this case, the contents of comment_stories may be outdated, as the most recent data from comments wasn't used to compute them.

You can resolve this issue by re-materializing the downstream asset. This will re-compute the contents with the most recent data/changes to its upstream dependency.

Materializing assets in Dagit#

In Dagit, you can launch runs that materialize assets by:

• Navigating to the Asset Details page for the asset and click the Materialize button in the upper right corner.
• Navigating to the graph view of the Assets page and clicking the Materialize button in the upper right corner. You can also click on assets to collect a subset to materialize.

Building jobs that materialize assets#

Jobs that target assets can materialize a fixed selection of assets each time they run and be placed on schedules and sensors. Refer to the Jobs documentation for more info and examples.

Grouping assets#

To help keep your assets tidy, you can organize them into groups. Grouping assets by project, concept, and so on simplifies keeping track of them in Dagit.

• Assigning assets to groups
• Viewing asset groups in Dagit

Assigning assets to groups#

In Dagster, there are two ways to assign assets to groups:

• By using the group_name argument when calling load_assets_from_package_module (recommended)
• By specifying a group name on an individual asset

By default, assets that aren't assigned to a group will be placed in a group named default. Use Dagit to view these assets.

From assets in a sub-module#

This recommended approach constructs a group of assets from a specified module in your project. Using the load_assets_from_package_module function, you can import all assets in a module and apply a grouping:

import my_package.cereal as cereal

cereal_assets = load_assets_from_package_module(
    cereal,
    group_name="cereal_assets",
)

On individual assets#

Assets can also be given groups on an individual basis by specifying an argument when creating the asset:

@asset(group_name="cereal_assets")
def nabisco_cereals():
    return [1, 2, 3]

To multiple groups#

Assets can only be assigned to one group at a time. Attempting to place a grouped asset in a second group will result in an error:

Group name already exists on assets [list_of_asset_keys]

Viewing asset groups in Dagit#

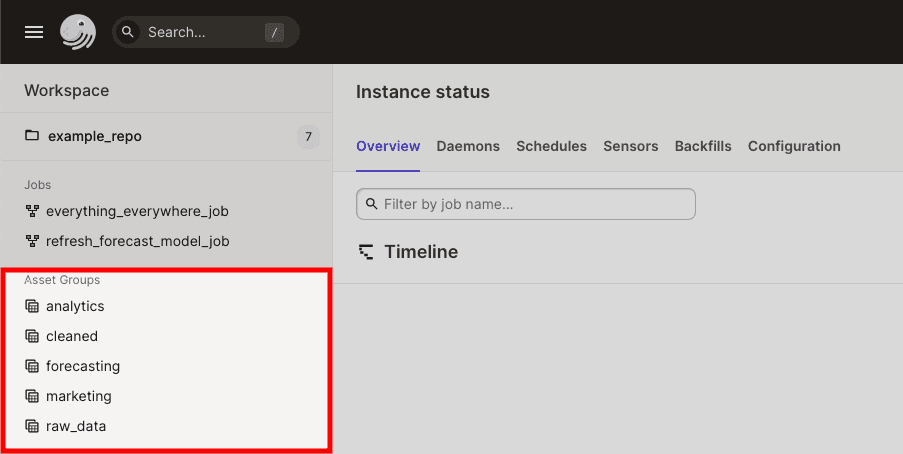

To view your asset groups in Dagit, open the left navigation by clicking the menu icon in the top left corner. As asset groups are grouped in repositories, you may need to open a repository to view its asset groups:

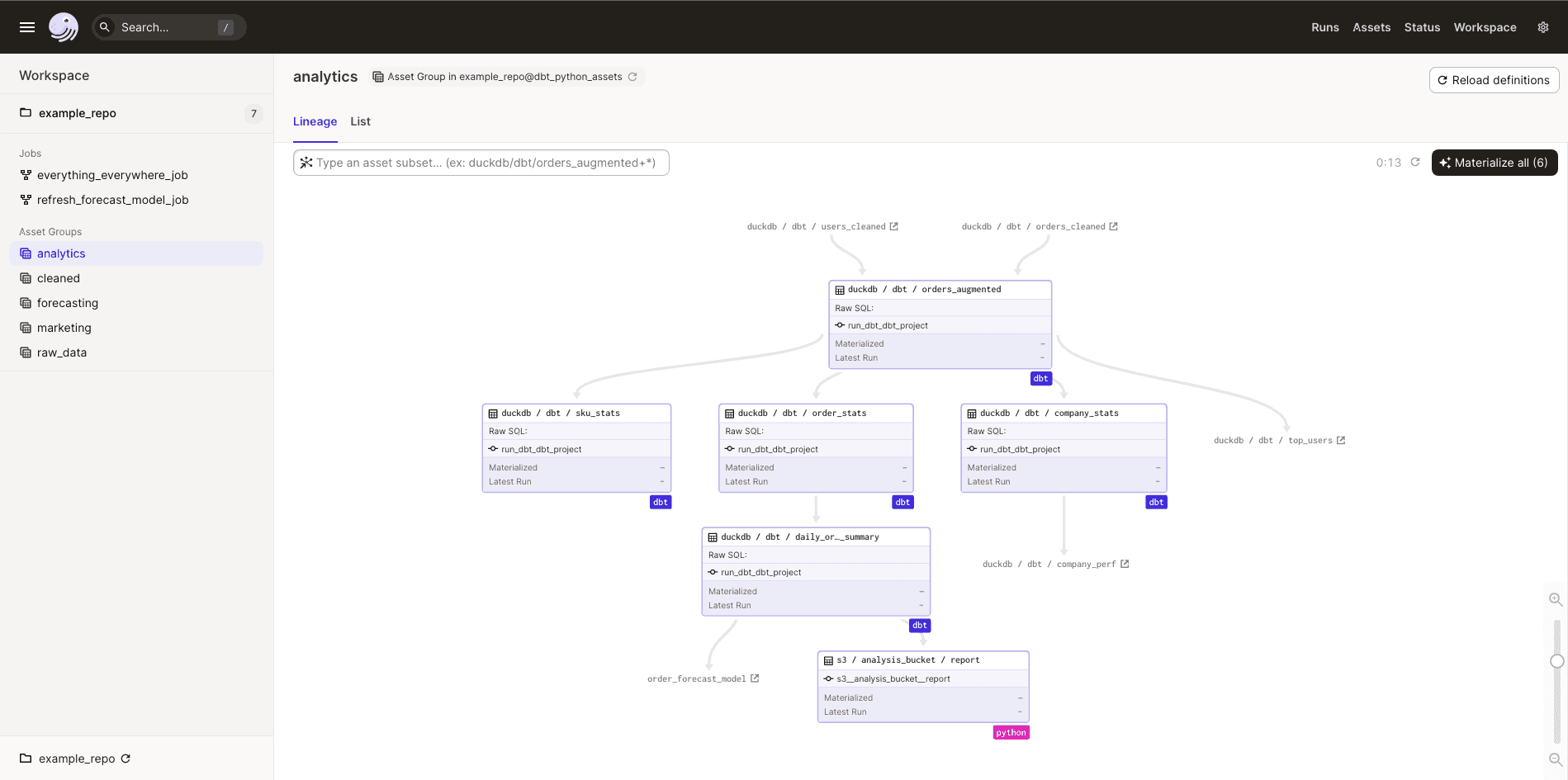

Click the asset group to open a dependency graph for all assets in the group:

Testing#

When writing unit tests, you can treat the function decorated by @asset as a regular Python function.

Consider a simple asset with no upstream dependencies:

@asset
def my_simple_asset():
    return [1, 2, 3]

When writing a unit test, you can directly invoke the decorated function:

def test_my_simple_asset():
    result = my_simple_asset()
    assert result == [1, 2, 3]

If you have an asset with upstream dependencies:

@asset
def more_complex_asset(my_simple_asset):
    return my_simple_asset + [4, 5, 6]

You can manually provide values for those dependencies in your unit test. This allows you to test assets in isolation from one another:

def test_more_complex_asset():
    result = more_complex_asset([0])
    assert result == [0, 4, 5, 6]

If you use a context object in your function, @asset will provide the correct context during execution. When writing a unit test, you can mock it with build_op_context. You can use build_op_context to generate the context object because under the hood the function decorated by @asset is an op.

Consider this asset that uses a resource:

@asset
def uses_context(context):
    return context.resources.foo

When writing a unit test, use build_op_context to mock the context and provide values for testing:

def test_uses_context():
    context = build_op_context(resources={"foo": "bar"})
    result = uses_context(context)
    assert result == "bar"

Examples#

• Multi-component asset keys
• Attaching metadata

Multi-component asset keys#

Assets are often objects in systems with hierarchical namespaces, like filesystems. Because of this, it often makes sense for an asset key to be a list of strings, instead of just a single string. To define an asset with a multi-part asset key, use the key_prefix argument-- this can be either a list of strings or a single string with segments delimited by "/". The full asset key is formed by prepending the key_prefix to the asset name (which defaults to the name of the decorated function).

from dagster import AssetIn, asset


@asset(key_prefix=["one", "two", "three"])
def upstream_asset():
    return [1, 2, 3]


@asset(ins={"upstream_asset": AssetIn(key_prefix="one/two/three")})
def downstream_asset(upstream_asset):
    return upstream_asset + [4]

Attaching metadata#

Dagster supports attaching arbitrary metadata to assets. To attach metadata, supply a metadata dictionary to the asset:

@asset(metadata={"cereal_name": "Sugar Sprinkles"})
def cereal_asset():
    return 5

Asset metadata can be viewed in Dagit on the Asset Detail page.

Further reading#

Interested in learning more about software-defined assets and working through a more complex example? Check out our guide on software-defined assets and our example project that integrates software-defined assets with other Modern Data Stack tools.

See it in action#

For more examples of software-defined assets, check out these examples:

• In the SDA Hacker News example:

  • Defining an asset
  • Loading assets from dbt
  • Per-asset IO manager
  • Partitioned assets

• In the Modern Data Stack example:

  • Defining assets
  • Loading assets from dbt
  • Loading assets from Airbyte

• The Bollinger example
